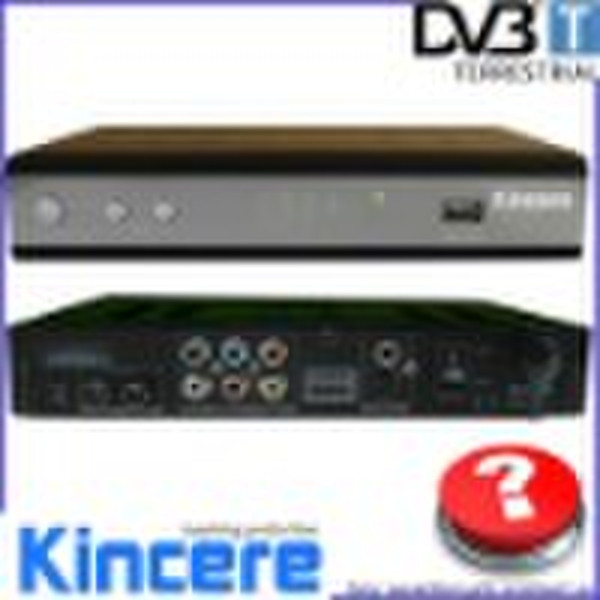

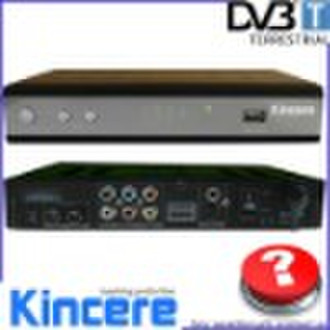

Digital Tv Receiver,SD DVB-T With HDMI,Support MPE

Mini Scart SD DVB-T MPEG4/H.264 Recorder: 1.Features •Fully DVB-T & H.264,MPEG-2,MPEG-4 compliant •Support EPG,Display Present/ Next TV Program •Support 7MHz & 8Mhz Software Setting •PAL & NTSC Auto Switch •Support VBI & OSD Teletext,OSD Subtitle,LCN •Upgrade software through USB socket,Media Playback,PVR function•Multi-languages Support •Auto / Manual scan •1000 Channels •Parental lock control 2.Audio/Video Decoder: Video Decoder:MPEG-2 (ISO/IEC 13818-2) H.264(ISO/IEC14496-10) Profile Level:MPEG-2MP#ML MPEG-4 AVC/H.264HP#L3.1 Input Rate :Max .60Mbit/s Aspect Ratio :4:3 & 16:9 Video Resolution: 720X576(PAL), 720X480(NTSC) Audio Decoding: MPEG/Musicam Layer 1,2,MP3,MPEG-2, LayerII MPEG-2 AAC decode Audio Mode: Single Channel / Dual Channel / Joint Stereo / Stereo Audio Sampling Rate: 32, 44.1&48KHz Digital Audio:S/PDIF output 3.Power Supply: Input Voltage range: AC 90 VAC 240VAC,50HZ 60HZ Power Consumption: Max 7W Demodulation: QPSK, 16QAM, 64QAM OFDM Spectrum: 2K and 8K Standard DVB-T EN300744 4.DVB-T Demodulation Part: Demodulation: QPSK, 16QAM, 64QAM OFDM Spectrum: 2K and 8K Standard DVB-T EN300744 5.Connector:SCART,RCA Optional 6.Technical Specifications: Video Format 720p, 576p, 576i Chipset Mstar7823 Video Decoder MPEG-2 (ISO/IEC 13818-2) H.264(ISO/IEC14496-10) Audio Decoder MPEG/Musicam Layer 1,2,MP3,MPEG-2, LayerII MPEG-2 AAC decode PVR Support Color Black Power consumption 7W HDMI V1.3 output Teletext Support Connector RCA/Scart Optional
